This element clones the input signal until a steady state value is reached
Keywords
digital, optical, electrical, unidirectional
Ports
| Name | Type |
|---|---|
| input | Variant |
| to | Variant |
| from | Variant |
| output | Variant |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
name Defines the name of the element. |
Convergence Control | - | - |
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
type Defines the element unique type (read only). |
Convergence Control | - | - |
description A brief description of the elements functionality. |
This element clones the input signal until a steady state value is reached | - | - |
prefix Defines the element name prefix. |
CVC | - | - |
model Defines the element model name. |
- | - | - |
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
url An optional URL address pointing to the element online help. |
- | - | - |
Numerical Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|

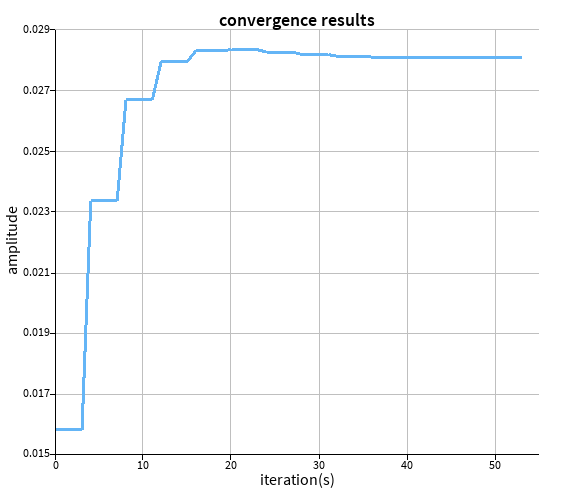

convergence tolerance This determines the convergence tolerance. |
1e-009 | - | (0, 1) |
convergence length This determines the number of iterations required to estimate convergence. |
2 | - | (0, +∞) |
maximum number of iterations This determines the maximum number of iterations required to reach converges. |
1000 | - | (0, +∞) |
====================================
