Read From Stream

Keywords

digital, optical, electrical, unidirectional

Ports

Name	Type
output	Variant

Properties

General Properties

Name	Default value	Default unit	Range
name Defines the name of the element.	Read From Stream	-	-
annotate Defines whether or not to display annotations on the schematic editor.	true	-	[true, false]
enabled Defines whether or not the element is enabled.	true	-	[true, false]
type Defines the element unique type (read only).	Read From Stream	-	-
description A brief description of the elements functionality.	Read From Stream	-	-
prefix Defines the element name prefix.	READ	-	-
model Defines the element model name.	-	-	-
library Defines the element location or source in the library (custom or design kit).	-	-	-
local path Defines the local path or working folder $LOCAL for the element.	-	-	-
url An optional URL address pointing to the element online help.	-	-	-

Standard Properties

Name

Default value

Default unit

Range

filename

The name of the file containing the input data (source).

file.icd

====================================

Implementation Details

The read from stream element reads an icd file into the system. The icd file can be generated by a write to stream element. Please see the example file Digital_Read_From_File.icp.

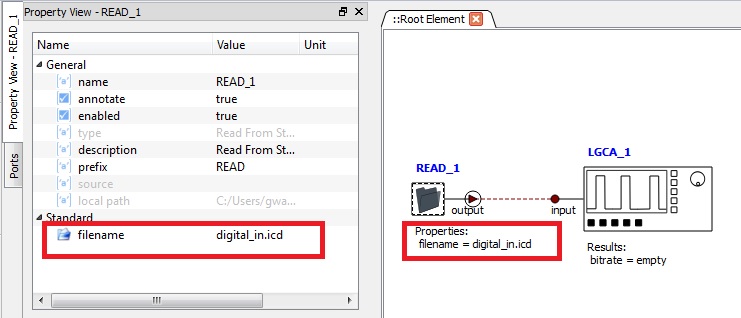

The file name is defined under the "Standard" category, In this example, the file is digital_in.icd.

Read From Stream (READ) - INTERCONNECT Element
