Electrical adder
Keywords
electrical, unidirectional
Ports
| Name | Type |
|---|---|
| input 1 | Electrical Signal |
| input 2 | Electrical Signal |
| output | Electrical Signal |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
name Defines the name of the element. |
Electrical Adder | - | - |
|
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
|
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
|
type Defines the element unique type (read only). |
Electrical Adder | - | - |
|
description A brief description of the elements functionality. |
Electrical adder | - | - |
|
prefix Defines the element name prefix. |
SUM | - | - |
|
model Defines the element model name. |
- | - | - |
|
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
|
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
|
url An optional URL address pointing to the element online help. |
- | - | - |
Diagnostic Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
run diagnostic Enables the frequency response of the designed filter implementation and the ideal frequency response to be generated as results. |
false | - | [true, false] |
|
diagnostic size The number of frequency points used when calculating the filter frequency response. |
1024 | - | [2, +∞) |
Results
| Name | Description |
|---|---|
| diagnostic/response #/transmission | The complex transmission vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/gain | The gain vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/error | Mean square error comparing the frequency response of the designed filter implementation with the ideal frequency response. |
====================================
Implementation Details

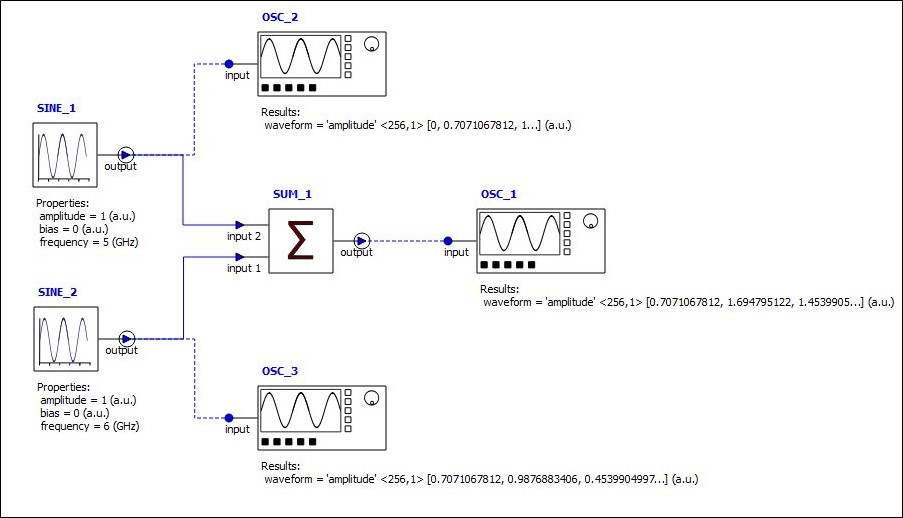

The Electrical Adder adds two electrical signals. For the implementation detail of this element. please see the example file electrical_adder,icp. The following figure is the system in the example file.

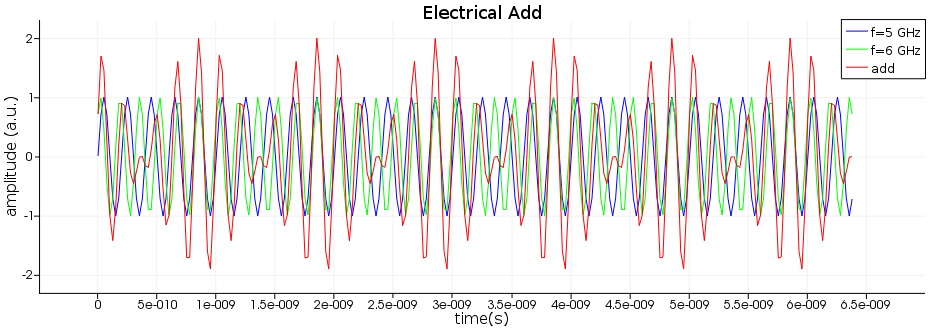

In the example file, the two input sinusoidal signals have different frequency and initial phase, the following figure shows the input signals and the sum of them.
