It separates optical signals that travel in opposite directions
Keywords
optical, bidirectional
Ports
Name | Type |
---|---|
port 1 | Optical Signal |
port 2 | Optical Signal |
port 3 | Optical Signal |
Properties
General Properties
Name | Default value | Default unit | Range |
---|---|---|---|
name Defines the name of the element. |
Optical Circulator | - | - |
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
type Defines the element unique type (read only). |
Optical Circulator | - | - |
description A brief description of the elements functionality. |
It separates optical signals that travel in opposite directions | - | - |
prefix Defines the element name prefix. |
CIR | - | - |
model Defines the element model name. |
- | - | - |
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
url An optional URL address pointing to the element online help. |
- | - | - |
Standard Properties
Name | Default value | Default unit | Range |
---|---|---|---|
configuration Defines the bidirectional or unidirectional element configuration. |
bidirectional | - | [bidirectional, unidirectional |
insertion loss Defines the insertion loss (attenuation). |
0 | dB | [0, +∞) |
isolation Defines the isolation. |
100 | dB | (-∞, +∞) |
return loss Defines the return loss. |
100 | dB | (-∞, +∞) |
Waveguide Properties
Name | Default value | Default unit | Range |
---|---|---|---|
modes List of optical mode labels supported by the element. |
TE,TM | - | - |
Diagnostic Properties
Name | Default value | Default unit | Range |
---|---|---|---|
run diagnostic Enables the frequency response of the designed filter implementation and the ideal frequency response to be generated as results. |
false | - | [true, false] |
diagnostic size The number of frequency points used when calculating the filter frequency response. |
1024 | - | [2, +∞) |
Results
Name | Description |
---|---|
diagnostic/response #/transmission | The complex transmission vs. frequency corresponding to the ideal and designed filter. |
diagnostic/response #/gain | The gain vs. frequency corresponding to the ideal and designed filter. |
diagnostic/response #/error | Mean square error comparing the frequency response of the designed filter implementation with the ideal frequency response. |
====================================
Implementation Details

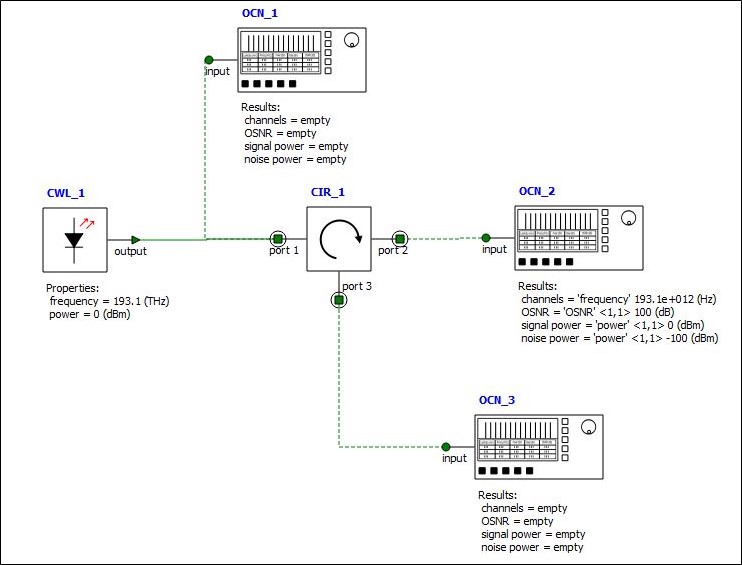

The 3 port optical circulator is an element that separates optical signals that travel in opposite directions in fiber. Please see the example file optical_circulator.icp for more information on the implementation details of this element. Following is a figure of the system in the example:
The light enters any port of the circulator exits from the next port; which means light goes into port 1 emits from port 2, and if some of the emitted light reflected back to the circulator, it will exit from port 3. The figure above clearly shown the working results of this element.
