Electrical attenuator
Keywords
electrical, unidirectional
Ports
| Name | Type |
|---|---|
| input | Electrical Signal |
| output | Electrical Signal |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
name Defines the name of the element. |
Electrical Attenuator | - | - |
|
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
|
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
|
type Defines the element unique type (read only). |
Electrical Attenuator | - | - |
|
description A brief description of the elements functionality. |
Electrical attenuator | - | - |
|
prefix Defines the element name prefix. |
ATT | - | - |
|
model Defines the element model name. |
- | - | - |
|
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
|
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
|
url An optional URL address pointing to the element online help. |
- | - | - |
Standard Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
attenuation Defines the attenuation |
0 | dB | (-∞, +∞) |
Diagnostic Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
run diagnostic Enables the frequency response of the designed filter implementation and the ideal frequency response to be generated as results. |
false | - | [true, false] |
|
diagnostic size The number of frequency points used when calculating the filter frequency response. |
1024 | - | [2, +∞) |
Results
| Name | Description |
|---|---|
| diagnostic/response #/transmission | The complex transmission vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/gain | The gain vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/error | Mean square error comparing the frequency response of the designed filter implementation with the ideal frequency response. |
====================================
Implementation Details

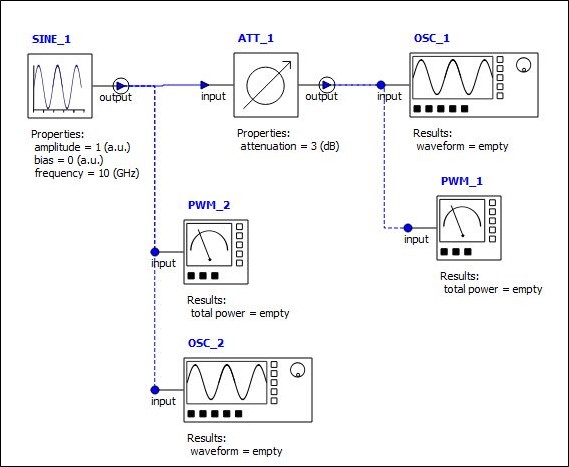

The element Electrical Attenuator attenuates the input signal by the amount of value according to user's setting. Following is the simulation system in the example file electrical_attenuator.icp to illustrate the working principle and effect of this element.

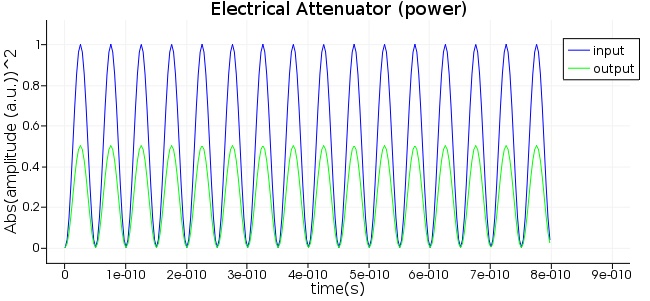

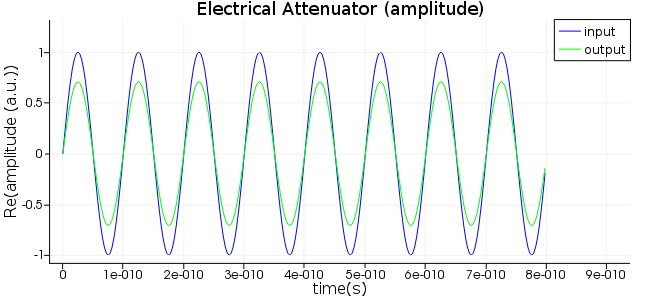

In the example, the attenuation is set to be 3 dB, which attenuates the signal power by half. The two figures below are the outputs of the oscilloscopes, for the signal's amplitude and power, respectively.
|
|
|
