The model generates Gaussian-distributed white noise
Keywords
electrical, unidirectional
Ports
Name | Type |
---|---|
output | Electrical Signal |
Properties
General Properties
Name | Default value | Default unit | Range |
---|---|---|---|
name Defines the name of the element. |
Noise Source | - | - |
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
type Defines the element unique type (read only). |
Noise Source | - | - |
description A brief description of the elements functionality. |
The model generates Gaussian-distributed white noise | - | - |
prefix Defines the element name prefix. |
NOISE | - | - |
model Defines the element model name. |
- | - | - |
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
url An optional URL address pointing to the element online help. |
- | - | - |
Standard Properties
Name | Default value | Default unit | Range |
---|---|---|---|
power spectral density The output signal power spectral density. |
10e-018 | W/Hz | [0, +∞) |
Numerical Properties
Name | Default value | Default unit | Range |
---|---|---|---|
automatic seed Defines whether or not to automatically create an unique seed value for each instance of this element. The seed will be the same for each simulation run. |
true | - | [true, false] |
seed The value of the seed for the random number generator. A value zero recreates an unique seed for each simulation run. |
1 | - | [0, +∞) |
Simulation Properties
Name | Default value | Default unit | Range |
---|---|---|---|
output signal mode The output signal mode. |
%output signal mode% | - | [sample, block |
number of output signals The number of simulation runs, or the number of generated signals. |
%number of output signals% | - | [1, +∞) |
sample rate The sample rate of the generated signal. This is typically set by the global properties in the root (top-most) element. |
%sample rate% | Hz | [0, +∞) |
====================================
Implementation Details

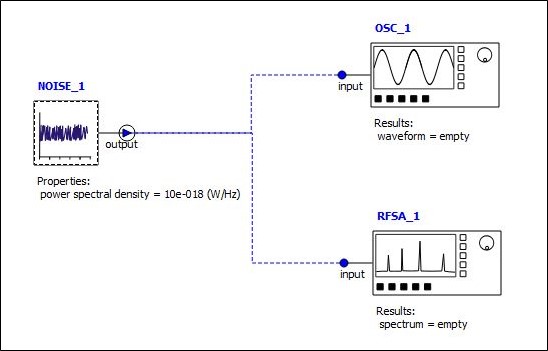

The Noise Source generates wide bandwidth Gaussian-distributed white noise. Please see the example file electrical_noise_source.icp for more information on this element. The following figure shows the system in the example file:

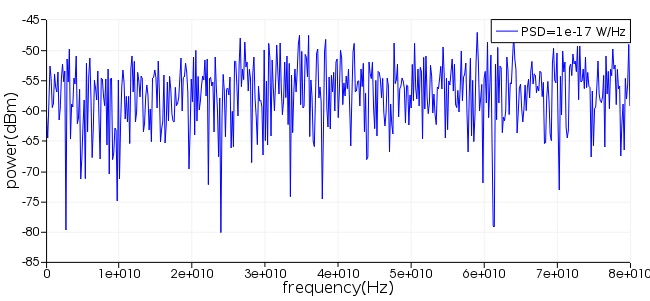

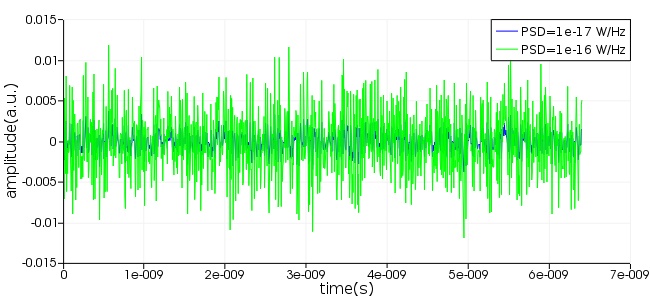

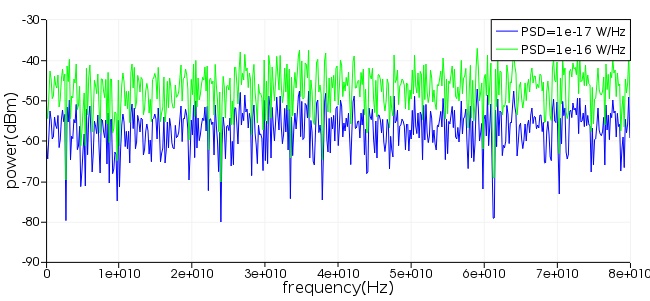

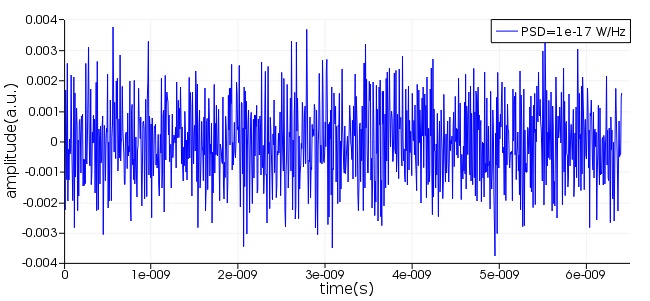

The standard property "power spectral density" (PSD) defines the strength of the noise that distributed in the frequency domain. The following figures show the waveform and spectrum of the noise with the PSD equals 1e-17 W/Hz and 1e-16 W/Hz, respectively.
