Measures the average signal power
Keywords
analyzer, electrical, unidirectional, bidirectional
Ports
| Name | Type |
|---|---|
| input | Electrical Signal |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
name Defines the name of the element. |
Power Meter | - | - |
|
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
|
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
|
type Defines the element unique type (read only). |
Power Meter | - | - |
|
description A brief description of the elements functionality. |
Measures the average signal power | - | - |
|
prefix Defines the element name prefix. |
PWM | - | - |
|
model Defines the element model name. |
- | - | - |
|
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
|
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
|
url An optional URL address pointing to the element online help. |
- | - | - |
|
icon type Defines the icon or element symbol view option. |
small | - | [small, medium |
Standard Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
input kind Defines the type of signal input. |
amplitude | - | [amplitude, voltage, current |
|
impedance Impedance used to simulate voltage or current input. |
1 | Ohms | (0, +∞) |
|
power unit Defines the power unit to plot the results. |
dBm | - | [W, dBm |
|
sensitivity The minimum detectable signal power level. |
-100 |
dBm* *std. unit is W |
(-∞, +∞) |
|
limit time range Enables setting the time range( start/stop) of the analysis. |
false | - | [true, false] |
|
start time Time instant to start the signal analysis. |
0 | s | [0, +∞) |
|
stop time Time instant to stop the signal analysis. |
1 | s | [0, +∞) |
Simulation Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
input signal selection Input signal selection option. |
last | - | [last, index |
|
input signal index The signal index to analyzed. |
1 | - | [1, +∞) |
|
include delays Defines whether inserted delays should be included as part of the signal or not. |
false | - | [true, false] |
Display Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
refresh Defines whether or not to update display and annotations during the simulation. |
true | - | [true, false] |
|
refresh length Defines how ofter to update the element. This is the minimum number of new data values available at the element input port that will trigger the element update. |
8192 | - | [0, +∞) |
Results
| Name | Description |
|---|---|
| total power | The input signal average total power (AC and DC). |
| ac power | The input signal average AC power. |
| dc power | The input signal average AC power. |
====================================
Implementation Details

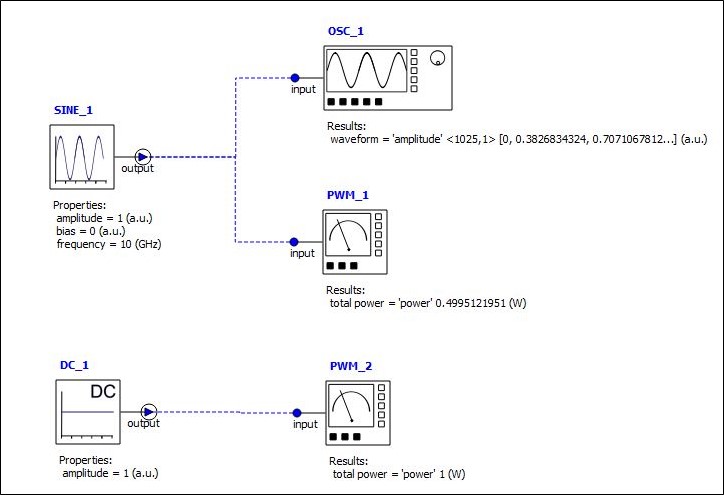

The power meter measures the average power of the input signal. Please see the example file PWM.icp for more information on this element. The following figure shows the system in the example file.

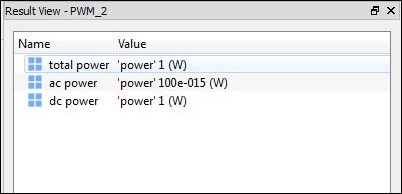

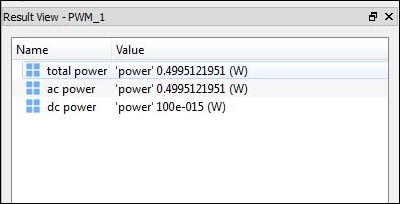

There are two types of input signals in the system, one DC source and one AC source. The power meters measure the average power of the two signals. The following figures show the measured results of the two electrical sources, respectively.
|
|
|
