This elements applies a logical NOT operation to the input port
Keywords
digital, unidirectional
Ports
Name | Type |
---|---|
input | Digital Signal |
output | Digital Signal |
Properties
General Properties
Name | Default value | Default unit | Range |
---|---|---|---|
name Defines the name of the element. |
Digital NOT | - | - |
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
type Defines the element unique type (read only). |
Digital NOT | - | - |
description A brief description of the elements functionality. |
This elements applies a logical NOT operation to the input port | - | - |
prefix Defines the element name prefix. |
NOT | - | - |
model Defines the element model name. |
- | - | - |
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
url An optional URL address pointing to the element online help. |
- | - | - |
====================================
Implementation Details

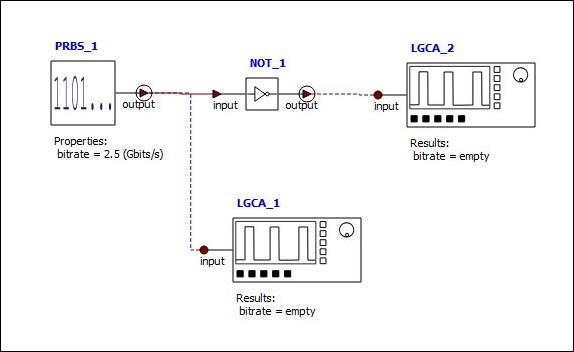

The element Digital NOT applies a logical NOT operation on the input signal. Following is the system in the example file digital_not.icp.

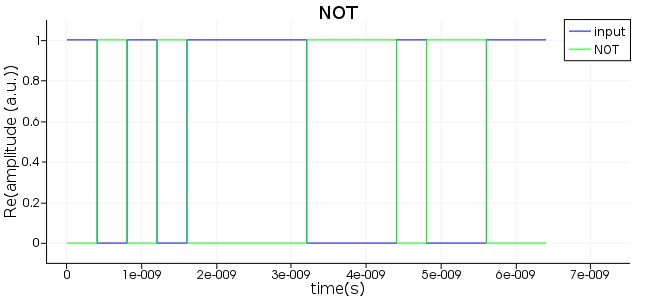

The following figure shows the output of the logical analyzers in the system.
