This element multiplies two electrical signals
Keywords
electrical, unidirectional
Ports
| Name | Type |
|---|---|
| input 1 | Electrical Signal |
| input 2 | Electrical Signal |
| output | Electrical Signal |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
name Defines the name of the element. |
Electrical Multiplier | - | - |
|
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
|
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
|
type Defines the element unique type (read only). |
Electrical Multiplier | - | - |
|
description A brief description of the elements functionality. |
This element multiplies two electrical signals | - | - |
|
prefix Defines the element name prefix. |
MIX | - | - |
|
model Defines the element model name. |
- | - | - |
|
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
|
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
|
url An optional URL address pointing to the element online help. |
- | - | - |
====================================
Implementation Details

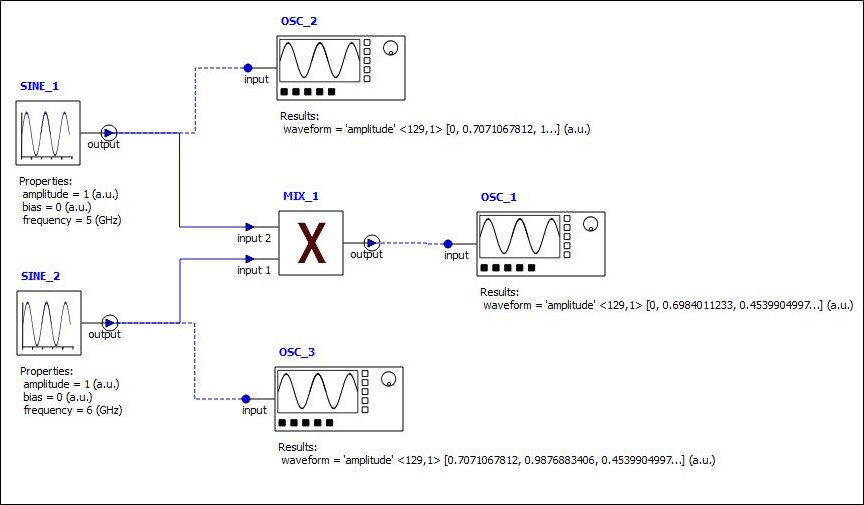

The Electrical Multiplier multiplies two electrical signals. Please see the example file electrical_multiplier.icp for the implementation details of this element. The following figure shows the system in the example file:

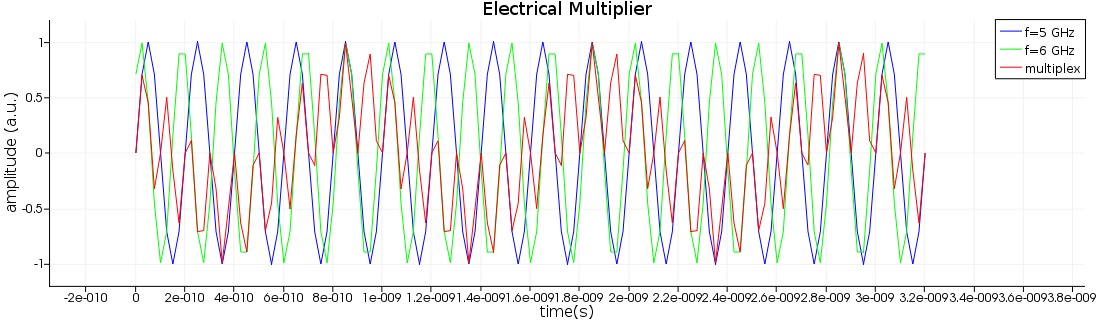

In the example file, the two input sinusoidal signals have different frequency and initial phase, the following figure shows the input signals and the multiplex of them.
