This element multiplies the input electrical signal by a constant value.
Keywords
electrical, unidirectional
Ports
Name | Type |
---|---|
input | Electrical Signal |
output | Electrical Signal |
Properties
General Properties
Name | Default value | Default unit | Range |
---|---|---|---|
name Defines the name of the element. |
Electrical Constant Multiplier | - | - |
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
type Defines the element unique type (read only). |
Electrical Constant Multiplier | - | - |
description A brief description of the elements functionality. |
This element multiplies the input electrical signal by a constant value. | - | - |
prefix Defines the element name prefix. |
GAIN | - | - |
model Defines the element model name. |
- | - | - |
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
url An optional URL address pointing to the element online help. |
- | - | - |
Standard Properties
Name | Default value | Default unit | Range |
---|---|---|---|
gain Defines the gain factor. |
1 | - | (-∞, +∞) |
Diagnostic Properties
Name | Default value | Default unit | Range |
---|---|---|---|
run diagnostic Enables the frequency response of the designed filter implementation and the ideal frequency response to be generated as results. |
false | - | [true, false] |
diagnostic size The number of frequency points used when calculating the filter frequency response. |
1024 | - | [2, +∞) |
Results
Name | Description |
---|---|
diagnostic/response #/transmission | The complex transmission vs. frequency corresponding to the ideal and designed filter. |
diagnostic/response #/gain | The gain vs. frequency corresponding to the ideal and designed filter. |
diagnostic/response #/error | Mean square error comparing the frequency response of the designed filter implementation with the ideal frequency response. |
====================================
Implementation Details

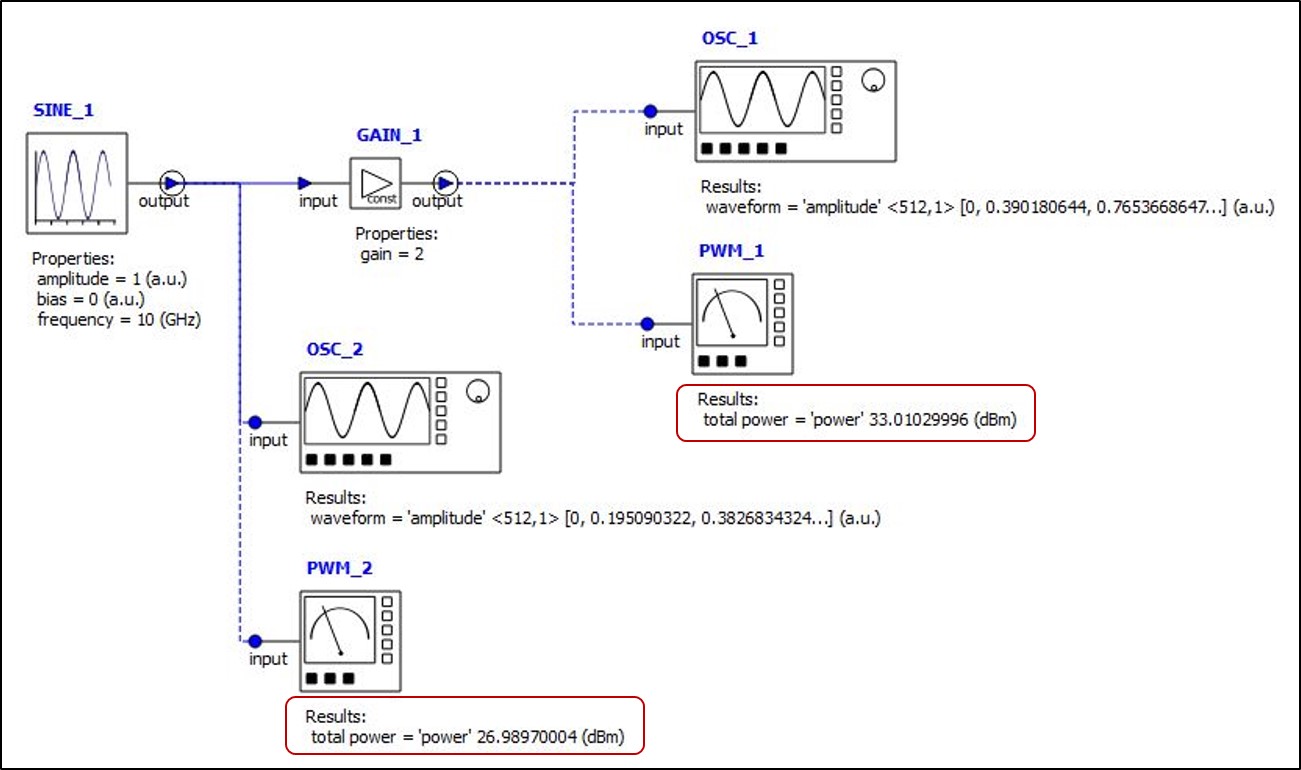

The element Electrical Constant Multiplier multiplies a constant value to the input signal's amplitude. For the implementation detail of this element, please see the example file electrical_constant_multiplier.icp, the following figure shows the system and simulation result of the system in the example.

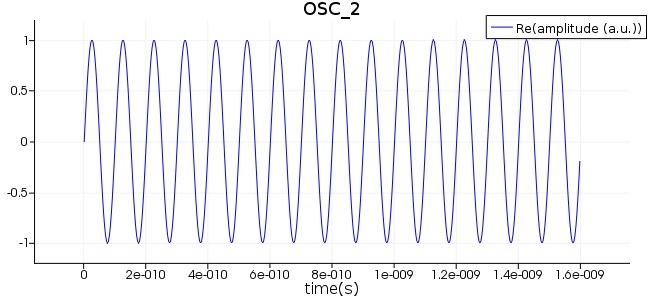

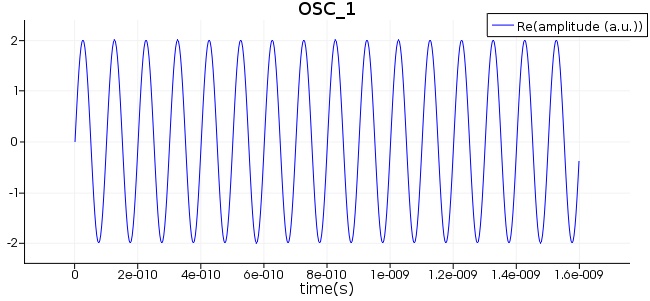

Please note that, the electrical constant multiplier multiplies the constant gain on the amplitude of the input signal, thus the powers of the signals gain have a square effect (6 dB of increment in log scale). The following figures are the output of the oscilloscopes in the system, the scales of the amplitude can be seen.
