Optical 2x2 switch
Keywords
optical, bidirectional
Ports
| Name | Type |
|---|---|
| port 1 | Optical Signal |
| port 2 | Optical Signal |
| port 3 | Optical Signal |
| port 4 | Optical Signal |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
name Defines the name of the element. |
Optical Switch | - | - |
|
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
|
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
|
type Defines the element unique type (read only). |
Optical Switch | - | - |
|
description A brief description of the elements functionality. |
Optical 2x2 switch | - | - |
|
prefix Defines the element name prefix. |
X | - | - |
|
model Defines the element model name. |
- | - | - |
|
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
|
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
|
url An optional URL address pointing to the element online help. |
- | - | - |
Standard Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
configuration Defines the bidirectional or unidirectional element configuration. |
bidirectional | - | [bidirectional, unidirectional |
|
control Switch control value. |
0 | - | - |
|
insertion loss Defines the insertion loss (attenuation). |
0 | dB | [0, +∞) |
|
isolation Defines the isolation. |
100 | dB | (-∞, +∞) |
|
return loss Defines the return loss. |
100 | dB | (-∞, +∞) |
Waveguide Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
modes List of optical mode labels supported by the element. |
TE,TM | - | - |
Diagnostic Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
run diagnostic Enables the frequency response of the designed filter implementation and the ideal frequency response to be generated as results. |
false | - | [true, false] |
|
diagnostic size The number of frequency points used when calculating the filter frequency response. |
1024 | - | [2, +∞) |
Results
| Name | Description |
|---|---|
| diagnostic/response #/transmission | The complex transmission vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/gain | The gain vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/error | Mean square error comparing the frequency response of the designed filter implementation with the ideal frequency response. |
====================================
Implementation Details

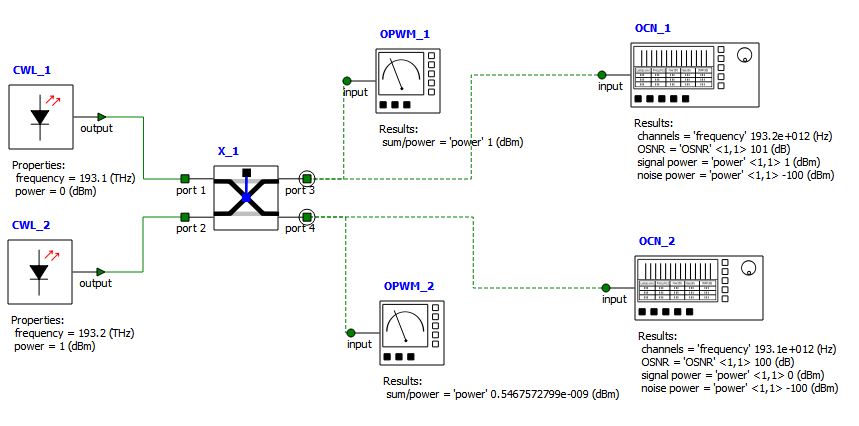

The optical switch is a 2x2 switch which by controlling the control electrode ("control" property in "standard" setting), the input signals can be switched to the outputs. Following is an example of the optical switch element, please see example file Optical_Switch.icp.
Please see also the application example Optical Switches for more information on optical switch.

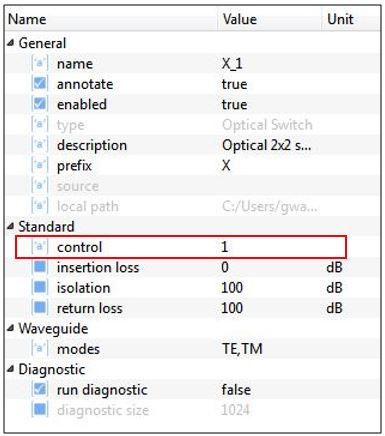

The control parameter is in the "standard" setting; when set to "0", the input signals to the two branches are directly transferred to the corresponding outputs; when set to "1", the input signals are switched to the outputs. The setting parameter is shown in the below figure.
The "insertion loss" adds the loss to both branches.
