Reflective mirror
Keywords
optical, bidirectional
Ports
| Name | Type |
|---|---|
| port 1 | Optical Signal |
| port 2 | Optical Signal |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
name Defines the name of the element. |
Optical Mirror | - | - |
|
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
|
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
|
type Defines the element unique type (read only). |
Optical Mirror | - | - |
|
description A brief description of the elements functionality. |
Reflective mirror | - | - |
|
prefix Defines the element name prefix. |
MIRR | - | - |
|
model Defines the element model name. |
- | - | - |
|
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
|
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
|
url An optional URL address pointing to the element online help. |
- | - | - |
Standard Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
configuration Defines the bidirectional or unidirectional element configuration. |
bidirectional | - | [bidirectional, unidirectional |
|
reflectivity Defines the reflectivity of the mirror. |
0.99 | - | [0, 1] |
Waveguide Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
modes List of optical mode labels supported by the element. |
TE,TM | - | - |
Diagnostic Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
run diagnostic Enables the frequency response of the designed filter implementation and the ideal frequency response to be generated as results. |
false | - | [true, false] |
|
diagnostic size The number of frequency points used when calculating the filter frequency response. |
1024 | - | [2, +∞) |
Results
| Name | Description |
|---|---|
| diagnostic/response #/transmission | The complex transmission vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/gain | The gain vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/error | Mean square error comparing the frequency response of the designed filter implementation with the ideal frequency response. |
====================================
Implementation Details
The optical mirror is a reflective mirror, following is a demonstration of the usage of the optical mirror and a comparison of the optical mirror and the termination mirror. Please see the example file Optical_Mirror_Termination_Mirror.icp.
|
|
|

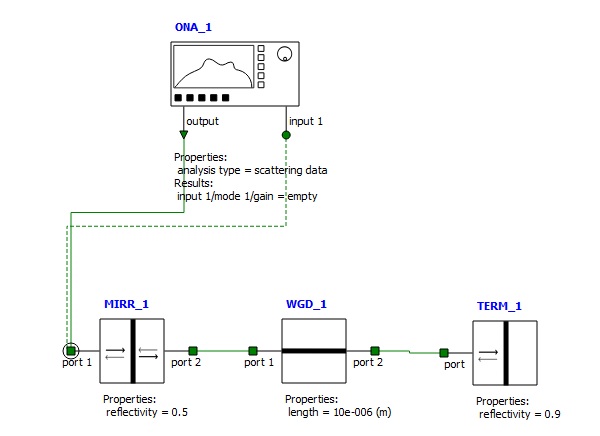

The first figure is a system of a Fabry-Perot resonator, please note that the second optical mirror is flipped to make the cavity symmetrical because there is a phase shift of π from port 2 to port 1. The second figure replaces the second optical mirror with a termination mirror, the two systems give the same results when the reflectivity of the two mirrors are set to be the same.

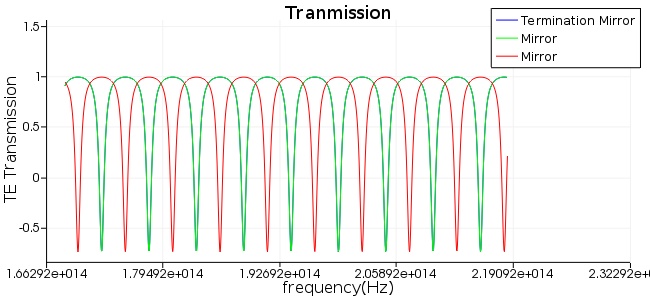

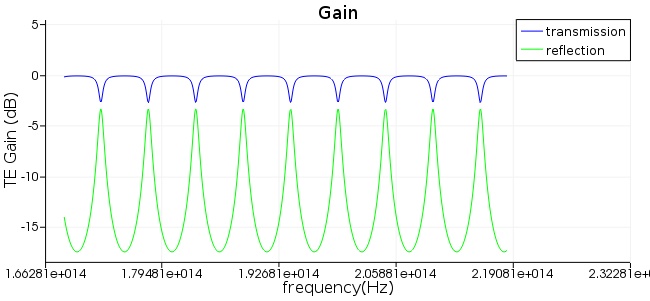

The following figures are the measurements of the system. The first figure measures the transmission of the systems with a termination mirror, a non-symmetrical optical mirror and a symmetrical mirror, respectively. It clearly indicates the π degree of phase shift from port 2 to port 1. The second figure shows the transmission and reflection of the system, without considering of loss, the transmission and reflection add up to 1.
|
|
|
