Applies a phase shift to the input signal
Keywords
optical, bidirectional
Ports
| Name | Type |
|---|---|
| port 1 | Optical Signal |
| port 2 | Optical Signal |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
name Defines the name of the element. |
Optical Phase Shift | - | - |
|
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
|
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
|
type Defines the element unique type (read only). |
Optical Phase Shift | - | - |
|
description A brief description of the elements functionality. |
Applies a phase shift to the input signal | - | - |
|
prefix Defines the element name prefix. |
PHS | - | - |
|
model Defines the element model name. |
- | - | - |
|
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
|
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
|
url An optional URL address pointing to the element online help. |
- | - | - |
Standard Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
configuration Defines the bidirectional or unidirectional element configuration. |
bidirectional | - | [bidirectional, unidirectional |
|
input parameter Defines whether to provide the phase or a table with frequency dependent values. |
constant | - | [constant, table |
|
phase shift The phase shift to apply to the input signal. |
0 | rad | (-∞, +∞) |
|
load from file Defines whether or not to load measurements from an input file or to use the currently stored values. |
false | - | [true, false] |
|
measurement filename The file containing the frequency dependent phase values. |
- | - | - |
|
measurement The table containing the frequency dependent phase values. |
<2> [193.1e+012, 0] | - | - |
Waveguide Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
modes List of optical mode labels supported by the element. |
TE,TM | - | - |
Numerical/Digital Filter Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
single tap filter Defines whether or not to use a single tap digital filter to represent the element transfer function in time domain. |
false | - | [true, false] |
|
number of taps estimation Defines the method used to estimate the number of taps of the digital filter. |
fit tolerance | - | [disabled, fit tolerance, group delay |
|
filter fit tolerance Defines the mean square error for the fitting function. |
0.001 | - | (0, 1) |
|
window function Defines the window type for the digital filter. |
rectangular | - | [rectangular, hamming, hanning |
|
number of fir taps Defines the number of coefficients for digital filter. |
256 | - | [1, +∞) |
|
maximum number of fir taps Defines the number of coefficients for digital filter. |
4096 | - | [1, +∞) |
|
filter delay Defines the time delay equivalent to a number of coefficients for digital filter. |
0 | s | [0, +∞) |
|
initialize filter taps Defines whether to use the initial input signal to initialize filter state values or to set them to zero values. |
false | - | [true, false] |
Diagnostic Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
|
run diagnostic Enables the frequency response of the designed filter implementation and the ideal frequency response to be generated as results. |
false | - | [true, false] |
|
diagnostic size The number of frequency points used when calculating the filter frequency response. |
1024 | - | [2, +∞) |
Results
| Name | Description |
|---|---|
| diagnostic/response #/transmission | The complex transmission vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/gain | The gain vs. frequency corresponding to the ideal and designed filter. |
| diagnostic/response #/error | Mean square error comparing the frequency response of the designed filter implementation with the ideal frequency response. |
====================================
Implementation Details

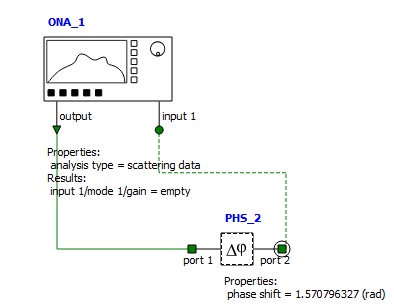

The optical phase shift applies a shift to the phase of the input signal. Following is an example and implementation details of how the optical phase shift element works, please see the example file: Optical_Phase_Shift.icp

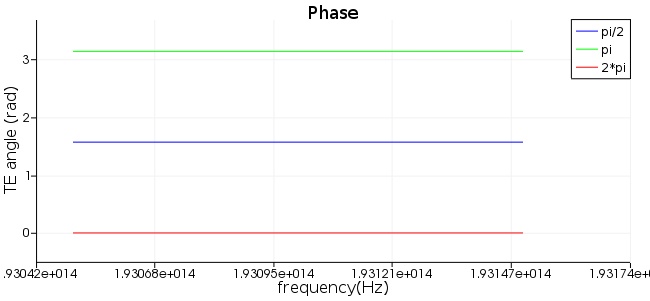

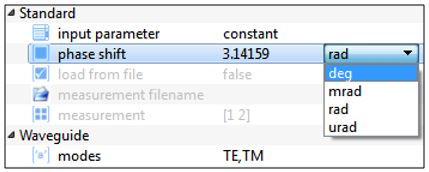

Following is a measurement of the phase shift, the phases of shift are π/2, π and 2π. The phase shift is in the setting of "standard", the unit of the phase shift can be chosen from "deg", "mrad", "rad" and "urad". Note that the range of the phase shift always falls into the region [0, 2π].
