The model generates a single impulse
Keywords
optical, unidirectional
Ports
| Name | Type |
|---|---|
| output | Optical Signal |
Properties
General Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
name Defines the name of the element. |
Optical impulse | - | - |
annotate Defines whether or not to display annotations on the schematic editor. |
true | - | [true, false] |
enabled Defines whether or not the element is enabled. |
true | - | [true, false] |
type Defines the element unique type (read only). |
Optical impulse | - | - |
description A brief description of the elements functionality. |
The model generates a single impulse | - | - |
prefix Defines the element name prefix. |
IMP | - | - |
model Defines the element model name. |
- | - | - |
library Defines the element location or source in the library (custom or design kit). |
- | - | - |
local path Defines the local path or working folder $LOCAL for the element. |
- | - | - |
url An optional URL address pointing to the element online help. |
- | - | - |
Standard Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
frequency Central frequency of operation. |
193.1 | THz* *std. unit is Hz |
(0, +∞) |
power The average output power. |
0 | dBm* *std. unit is W |
(-∞, +∞) |
phase The initial output signal phase. |
0 | rad | (-∞, +∞) |
delay The time delay to apply to the output signal. |
0 | s | [0, +∞) |
Polarization Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
azimuth The azimuth angle (polarization ellipse) of the signal output. |
0 | rad | [-1.5708, 1.5708] |
ellipticity The ellipticity angle (polarization ellipse) of the signal output. |
0 | rad | [-0.785398, 0.785398] |
Waveguide/Mode 1 Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
orthogonal identifier 1 The first identifier used to track an orthogonal mode of an optical waveguide. For most waveguide, two orthogonal identifiers '1' and '2' are available (with the default labels 'TE' and 'TM' respectively). |
1 | - | [1, +∞) |
label 1 The label corresponding to the first orthogonal identifier. |
X | - | - |
Waveguide/Mode 2 Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
orthogonal identifier 2 The second identifier used to track an orthogonal mode of an optical waveguide. For most waveguide, two orthogonal identifiers '1' and '2' are available (with the default labels 'TE' and 'TM' respectively). |
2 | - | [1, +∞) |
label 2 The label corresponding to the second orthogonal identifier. |
Y | - | - |
Simulation Properties
| Name | Default value | Default unit | Range |
|---|---|---|---|
output signal mode The output signal mode. |
%output signal mode% | - | [sample, block |
number of output signals The number of simulation runs, or the number of generated signals. |
%number of output signals% | - | [1, +∞) |
sample rate The sample rate of the generated signal. This is typically set by the global properties in the root (top-most) element. |
%sample rate% | Hz | [0, +∞) |
====================================
Implementation Details

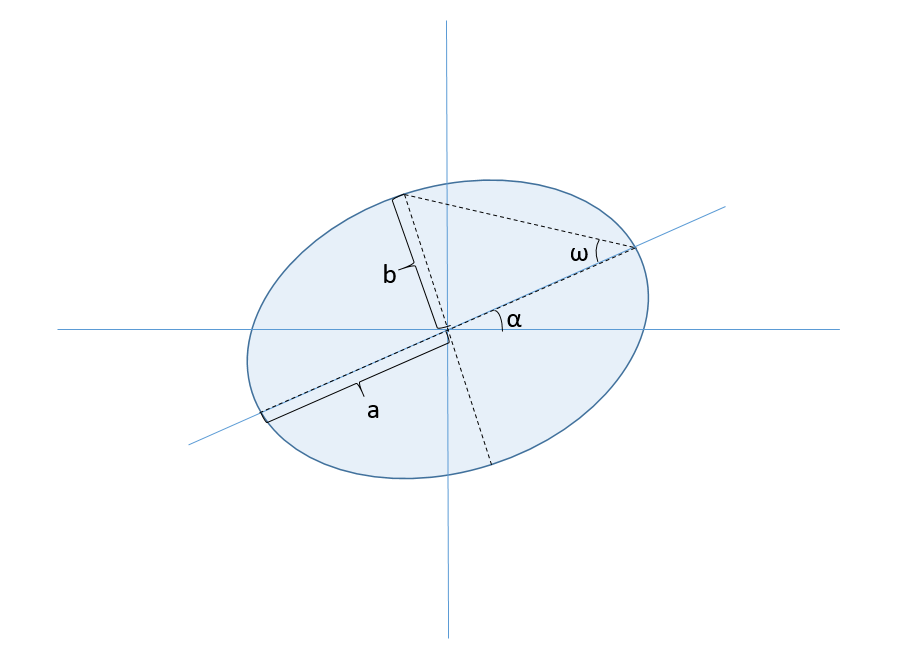

The state of polarization (SOP) of the CW Laser model is defined by using the polarization ellipse as shown in Fig. 1, where the angle ω is the ellipticity angle and α is the azimuth, b and a are the minor and major axis of the ellipse, respectively. Then the unified Stokes Parameters are defined by Equation. 1.
|
|
|
