INTERCONNECT

User defined scripted source

Keywords

electrical, unidirectional

Ports

Name	Type
output	Electrical Signal

Properties

General Properties

Name	Default value	Default unit	Range
name Defines the name of the element.	Scripted Source	-	-
annotate Defines whether or not to display annotations on the schematic editor.	true	-	[true, false]
enabled Defines whether or not the element is enabled.	true	-	[true, false]
type Defines the element unique type (read only).	Scripted Source	-	-
description A brief description of the elements functionality.	User defined scripted source	-	-
prefix Defines the element name prefix.	SRC	-	-
model Defines the element model name.	-	-	-
library Defines the element location or source in the library (custom or design kit).	-	-	-
local path Defines the local path or working folder $LOCAL for the element.	-	-	-
url An optional URL address pointing to the element online help.	-	-	-

Standard Properties

Name

Default value

Default unit

Range

script

User defined script.

OUTPUT=sin(2*pi*1e9*TIME);

Simulation Properties

Name

Default value

Default unit

Range

output signal mode

The output signal mode.

%output signal mode%

[sample, block

number of output signals

The number of simulation runs, or the number of generated signals.

%number of output signals%

[1, +∞)

sample rate

The sample rate of the generated signal. This is typically set by the global properties in the root (top-most) element.

%sample rate%

[0, +∞)

====================================

Implementation Details

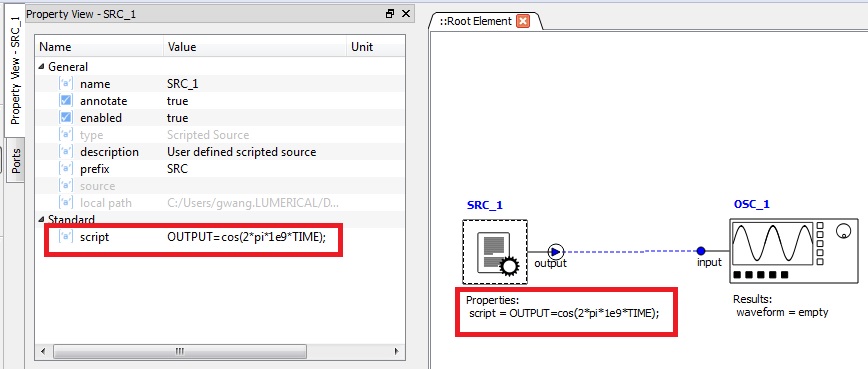

The script source is a user defined electrical source, the definition is written by script language, please see the example file Scripted_Source.icp for more information.

In this example, two simple sinusoidal functions are used to define the optical source, following is the oscilloscope output waveforms.

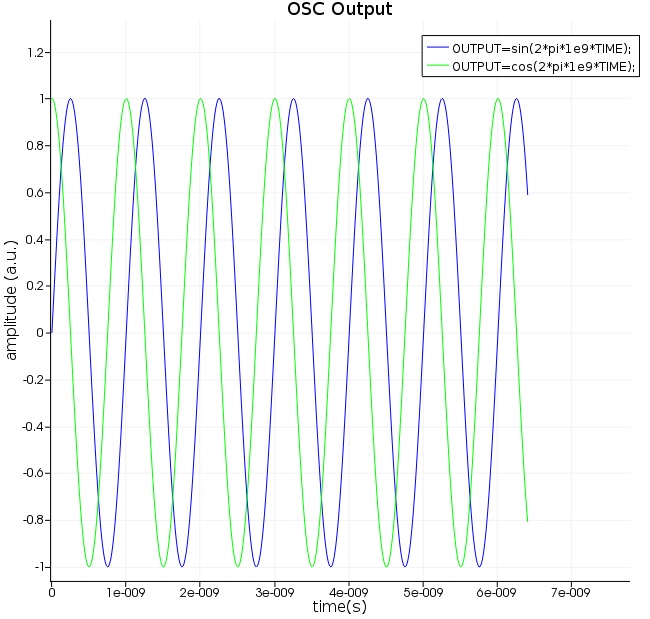

Fig. 1 OSC output waveform
