Note: For legacy data format (2022 R2.4 and older) please visit following link:
electro_absorption_modulator QA (Legacy)
Photonic Model: electro_absorption_modulator
Information on QA tests and QA types: Introduction to Quality Assurance (QA) tests
Instructions on running QA tests: Running QA tests in CML Compiler
QA tests
QA script | QA type | FOMs | Comments |
---|---|---|---|
Behaviour |
IL, ER | ||
Behaviour |
BW |
|
QA Variables
These variables are defined as below in a struct named "QA" in the source data file:
[[snippet||12090859613587]]
QA Scripts
electro_absorption_modulator_IL_ER_qa.lsf

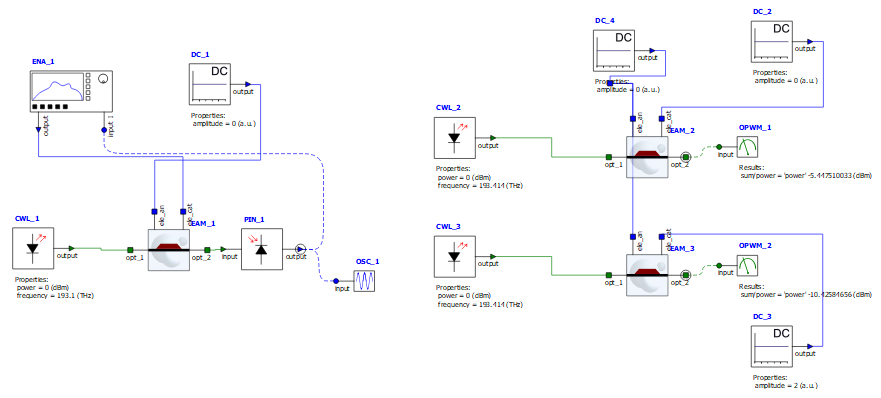

In this test-bench, the electro absorption modulator compact models are biased based on the power values provided in "ref1" and "ref2" in the ER struct in FOMS section of the source data file and the gain spectrums are obtained. IL and ER are extracted and compared to "IL" and "ER" values in the relative_tolerances section in the QA section of the source data to make sure the difference is within the tolerance values.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
|
relative_tolerances:
|
electro_absorption_modulator_BW_qa.lsf

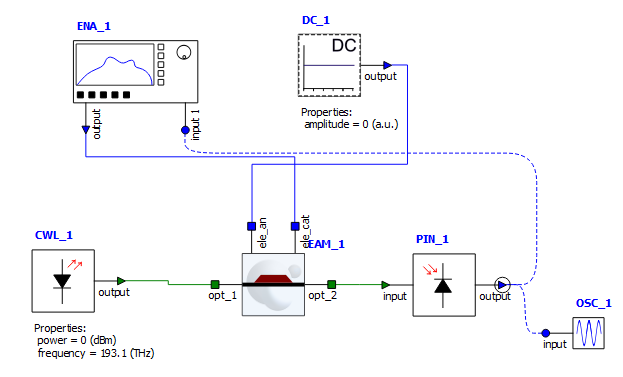

The following test-bench is used to extract electrical bandwidth for the electro-absorption modulator compact model. The extracted bandwidth then is compared to data provided in "bandwidth_data" in source data and make sure the difference is within the tolerance value.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
BW |
relative_tolerances:
|
