Digital Logic (LOGIC) - INTERCONNECT Element – Ansys Optics

INTERCONNECT

This elements applies a logical operation to any number of input ports

Keywords

digital, unidirectional

Ports

Name	Type
input 1	Digital Signal
input 2	Digital Signal
output	Digital Signal

Properties

General Properties

Name	Default value	Default unit	Range
name Defines the name of the element.	Digital Logic	-	-
annotate Defines whether or not to display annotations on the schematic editor.	true	-	[true, false]
enabled Defines whether or not the element is enabled.	true	-	[true, false]
type Defines the element unique type (read only).	Digital Logic	-	-
description A brief description of the elements functionality.	This elements applies a logical operation to any number of input ports	-	-
prefix Defines the element name prefix.	LOGIC	-	-
model Defines the element model name.	-	-	-
library Defines the element location or source in the library (custom or design kit).	-	-	-
local path Defines the local path or working folder $LOCAL for the element.	-	-	-
url An optional URL address pointing to the element online help.	-	-	-

Standard Properties

Name

Default value

Default unit

Range

logic operator

Defines the logic operation to be applied to the input signal.

AND

[AND, OR, NAND, NOR, XOR, NXOR

number of input ports

Defines the number of input ports for the element.

[2, +∞)

====================================

Implementation Details

The Digital Logic element applies logical operations to the input digital bits. For the logical operation truth table, please refer to the table below.

Bit 1	Bit 2	AND	OR	NAND	NOR	XOR	NXOR
0	0	0	0	1	1	0	1
0	1	0	1	1	0	1	0
1	0	0	1	1	0	1	0
1	1	1	1	0	0	0	1

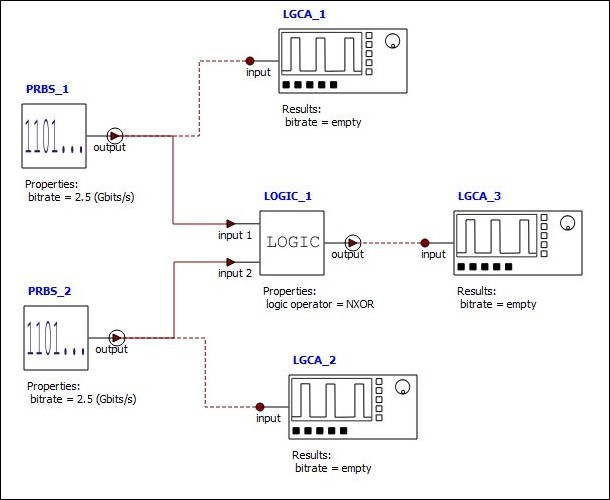

The following figure shows the system in the example file digital_logic.icp.

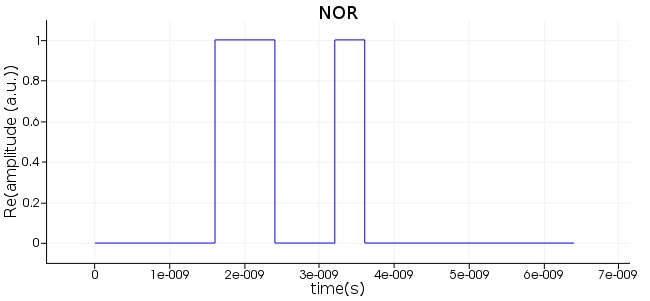

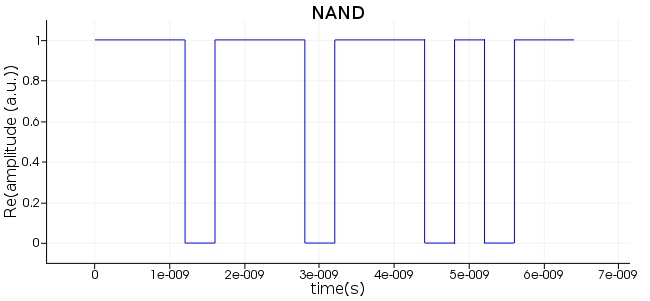

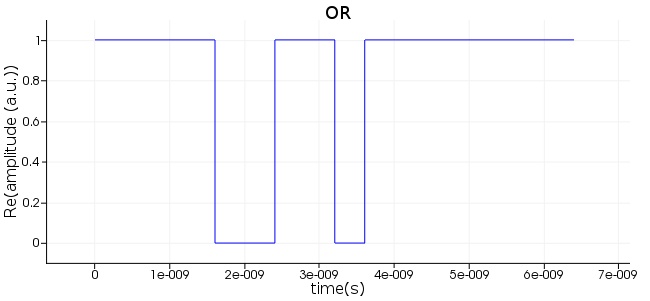

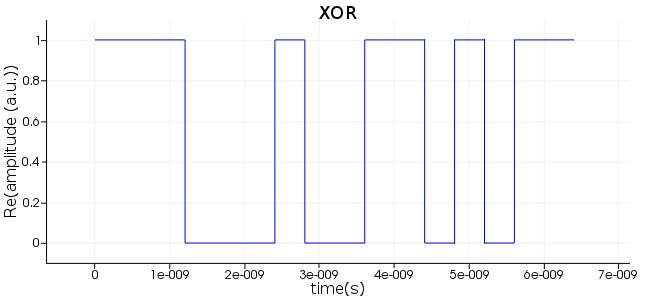

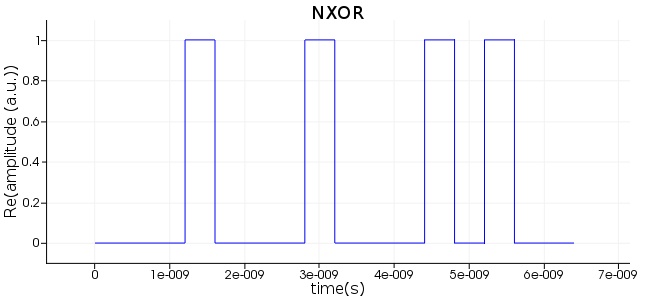

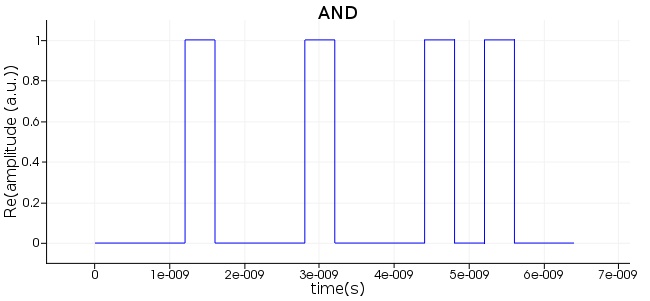

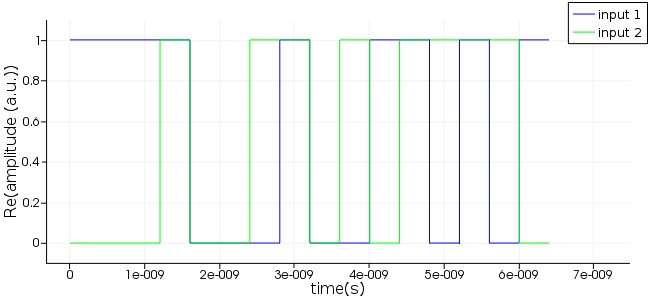

The table below shows the input signals and the output for different logical operations.
