Results

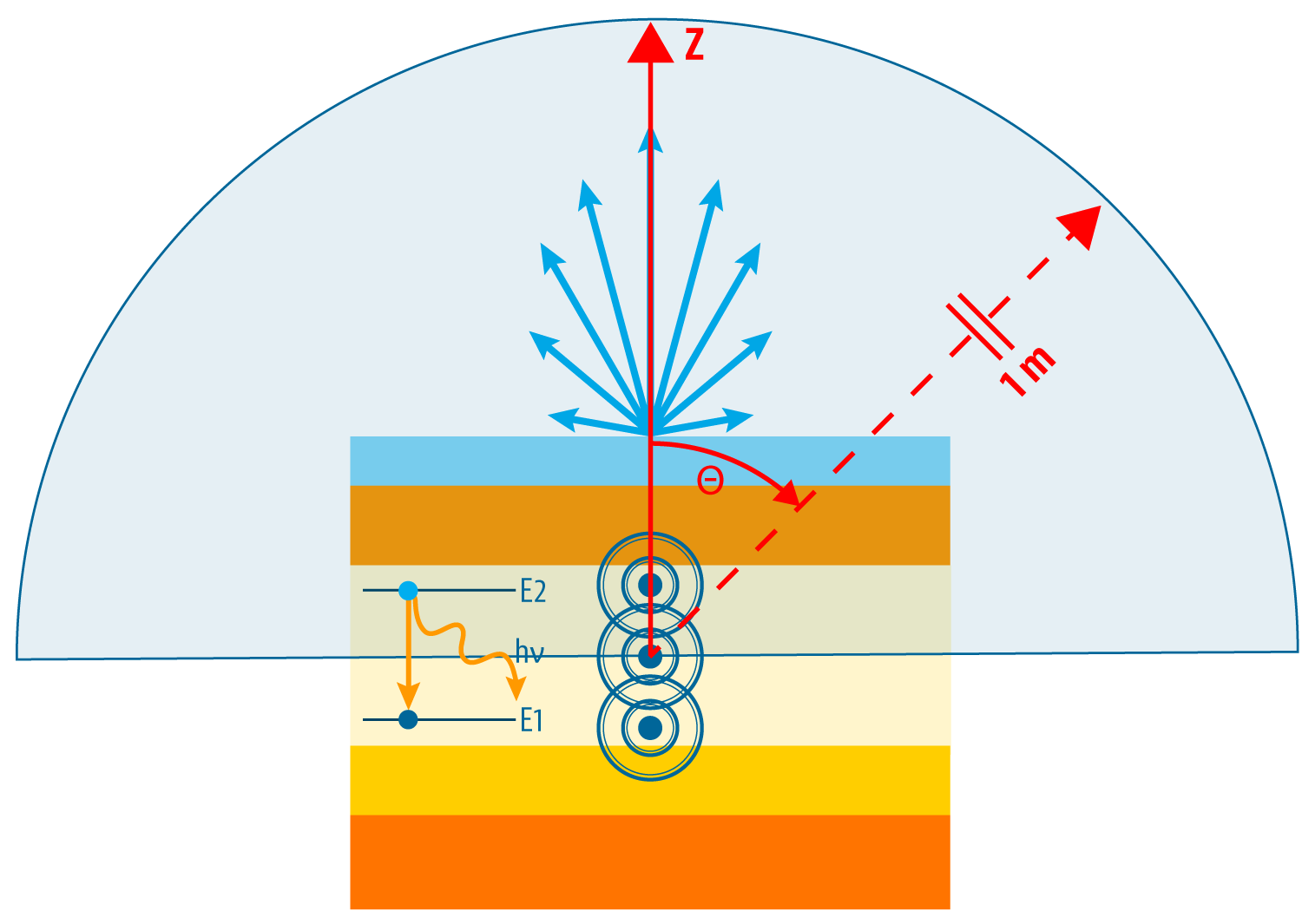

Analytically calculates the Purcell factor and far-field emission power density for a multilayer stack. For more information on the theory behind this approach, see Stack dipole half-space example. The usage for this command is very similar to stackdipole, but the result returned in this case is a struct that contains the following datasets. The power_density is functions of the emission angle \( \theta \) measured from the surface normal (see above image).
| Result | Description |
|---|---|
| power |
Power [normalized] Attribute: purcell_factor. This is the total power of a monochromatic dipole at the specified position and emission frequency divided by the power that it would radiate in a homogeneous medium. Parameters: dipole/z, f/lambda |
| density |
Power [normalized/steradian] Attributes: upward, downward, upward_into_air, downward_into_air. This is the power density per unit solid angle, as function of far field emission angle, also normalized to the power that would radiate in a homogeneous medium. Parameters: theta, dipole/z, f/lambda |
For more information on the theory behind this approach, see Stack dipole half-space example. Additional discussion on the results can be found at STACK GUI - OLED Device Introduction.
Usage
| Syntax | Description |
|---|---|
|
result = stackpurcell(n,d,f,z,orientation,res) |
Analytically calculates the Purcell factor and far-field emission power density of a multi-layer stack
|
|
result = stackpurcell(n,d,f,z,options) |
| Parameter | Default value | Type | Description | |
|---|---|---|---|---|
| n | required | vector |
n: Refractive index of each layer. Size can be
|
|
| d | required | vector |
Thickness of each layer. Size is N_layers. |
|
| f | required | vector | Frequency vector. | |
| z | required | vector |
Position of the dipoles (0 is the bottom of the stack). Size is N_dipoles, and dipoles must be located within boundaries. |
|
| orientation | optional | "rand" | cell of strings |
Orientation of the dipoles. Accepts string or cell array as 'orientation' argument with values:
Size is N_dipoles. |
| res | optional | 1000 | number | The resolution for far-field emission angle. |
| options | optional | struct |
In 2021R1.1 and later: This struct can be used to pass optional arguments. Passing this struct allows users to specify the following parameters: "orientation": defines orientation of the dipole. "res"/"theta": defines the output angles explicitly, instead of simply resolution. To specify the angles pass them as a vector "theta" in degrees [0,90). "incoherent_propagation": a vector argument defines the coherent and incoherent layers of the stack with 0 = coherent propagation and 1 = incoherent propagation. The dipole cannot be located in an incoherent layer. Lossy incoherent layers are unsupported and will give incorrect results. If using options then all optional arguments, must be passed through the struct. |
Example
Explore the effect of the dipole position on the angular distribution of the far-field emission:
### Use stackpurcell to explore the position of dipole in a multilayer stack
# frequency range
N_freq = 101;
lambda = linspace(380e-9,780e-9,N_freq); # 380nm to 780nm
f = c/lambda;
# Intialize multilayer geometry
n = matrix(5,N_freq);
d = matrix(5,1);
#Define optical and geometric layer propertie
n(1,1:N_freq) = getfdtdindex("Al (Aluminium) - Palik",f,f(1),f(N_freq)); d(1) = 0; # bottom substrate
# Note: this reads the material properties from FDTD material database. If you are using another product, please enter (n,k) explicitly
n(2,1:N_freq) = 1.85; d(2) = 60e-9;
n(3,1:N_freq) = 1.9; d(3) = 220e-9;
n(4,1:N_freq) = 1.8; d(4) = 120e-9;
n(5,1:N_freq) = 1.53; d(5) = 0; # top substrate (glass)
# dipole positions/orientations
N_dipole= 51; # number of dipoles
z = linspace( d(2)+1e-10, d(2)+d(3)+1e-10, N_dipole ); # consider positions only within middle dielectric layer
orientation = cell(N_dipole); # consider only randomly oriented dipoles
for(ii = 1:N_dipole){
orientation{ii} = "rand";}
# angular_res: resolution for emission angle (farfield angle)
res = 198;
result = stackpurcell(n,d,f,z,orientation,res); # result is a struct
# plot Purcell factor for dipole located at the middle of the layer
purcell = pinch(result.power.purcell_factor); # size is Ndipole by Nfreqs
plot(lambda*1e9, pinch(purcell,1,round(N_dipole/2)),'wavelength (nm)','Purcell factor');
# plot far field power density at center frequency
theta = pinch(result.density.theta);
density = pinch(result.density.upward_into_air); # size is res by Ndipole by Nfreqs
image(theta, z*1e+9, pinch(density,3,round(N_freq/2)), "far-field angle (degrees)", "dipole position (nm)", num2str(f(round(N_freq/2))*1e-12)+"THz into Air");
# In 2020R1.2
incoherent_propagation = [0, 0, 1, 0, 0];
options={ "res": 1000, "orientation": 'rand',"incoherent_propagation":incoherent_propagation};
stackpurcell(n,d,f,z,options);
#or
options={ "theta": linspace(0,45,100) , "orientation": 'vert', "incoherent_propagation":incoherent_propagation};
stackpurcell(n,d,f,z,options);See Also
