Adds a PML (perfectly matched layer) boundary condition object to the DGTD or FEEM solver in Ansys Lumerical Multiphysics™. At least, one of these solvers should be present in the Objects Tree for this command to work.
| Syntax | Description |
|---|---|
| addpml; |
Adds a PML boundary condition to the DGTD or FEEM solver. Use only when there is a single solver in the Object Tree. This function does not return any data. |
|
addpml("DGTD"); addpml("FEEM"); |
When there are both DGTD and FEEM in the Object Tree, you need to specify the solver. |
Example 1:
The following script commands will add a PML boundary condition to the 'DGTD' solver already present in the object tree and print all available properties of the boundary condition.
addpml;
?set;|

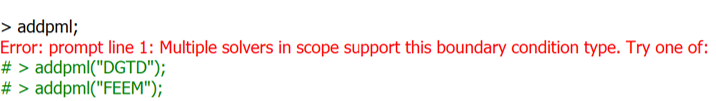

NOTE: When there are both DGTD and FEEM solvers in the Object Tree, running the script without any "solver" argument will produce the following error: |
Example 2
The following script commands will add a PML boundary condition to the 'DGTD' solver, name it, and set the values for sigma and alpha.
adddgtdsolver;
addpml({"name":"simple_pml", "sigma":5});| NOTE: The PML boundary condition automatically gets applied to the shell regions in the corresponding simulation region. |
See Also
adddgtdsolver , addpmc , addpec , addperiodic , addabsorbing
