electro_absorption_modulator QA
Photonic Model: electro_absorption_modulator
Information on QA tests and QA types: Introduction to Quality Assurance (QA) tests
Instructions on running QA tests: Running QA tests in CML Compiler
QA tests
QA script | QA type | FOMs | Comments |
---|---|---|---|
Behaviour |
IL, ER | ||
Behaviour |
BW |
|
QA Variables
[[snippet||6605922474003]]
QA Scripts
electro_absorption_modulator_IL_ER_qa.lsf

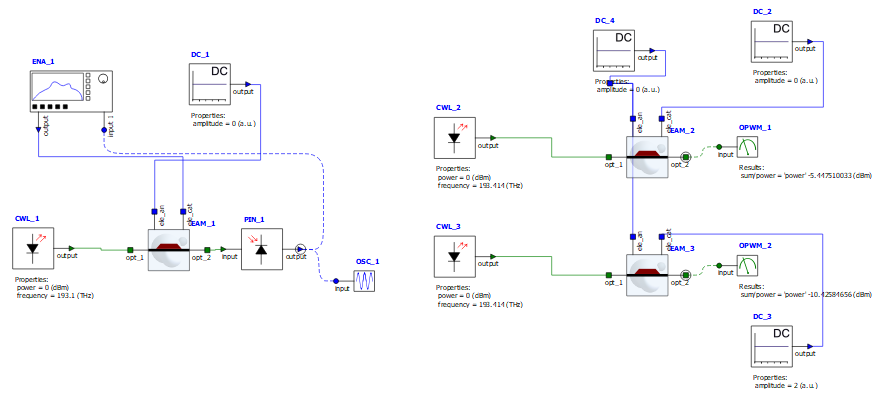

In this test-bench, the electro absorption modulator compact models are biased based on the power values provided in "ER_voltage1" and "ER_voltage2" in the source data file and the gain spectrums are obtained. IL and ER are extracted and compared to "IL_rel_tolerance" and "ER_rel_tolerance" values in source data to make sure the difference is within the tolerance values.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
|
|
electro_absorption_modulator_BW_qa.lsf

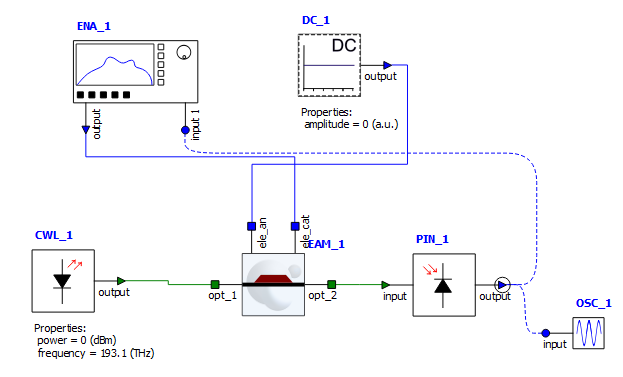

The following test-bench is used to extract electrical bandwidth for the electro-absorption modulator compact model. The extracted bandwidth then is compared to data provided in "bandwidth_data" in source data and make sure the difference is within the tolerance value.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
BW |
BW_rel_tolerance |
