Photonic Model: mach_zehnder_modulator, mach_zehnder_modulator_2x2
Information on QA tests and QA types: Introduction to Quality Assurance (QA) tests
Instructions on running QA tests: Running QA tests in CML Compiler
QA tests
QA script | QA type | FOMs | Comments |
---|---|---|---|
Behavior |
BW |
MZM only |
|
Behavior |
BW |
MZM only |
|
mach_zehnder_modulator_thermal_BW_qa.lsf |
Behavior |
Thermal BW |
(if thermal tuner is available) |
Behavior |
Vpi and IL |
balanced (Vpi for MZM only) |
|
Behavior |
Thermal_Ppi |
balanced (if thermal tuner is available) |
|
Behavior |
Notch_wl, FSR, ER and IL |
unbalanced |
|
Behavior |
Thermal_Ppi |
unbalanced (if thermal tuner is available) |
|
Behavior |
dneff_dT |
unbalanced |
|
Behavior |
Vpi |
unbalanced (MZM only) |
|
Regression |
Statistical |
balanced MZM, statistical compact model |
|
Regression |
Statistical |
unbalanced MZM, statistical compact model |
QA Variables
[[snippet||6794645853843]]
Statistical QA Variables
(statistical compact models only)
[[snippet||6990676102547]]
QA scripts
mach_zehnder_modulator_unbalanced_notch_wl_FSR_ER_IL_qa.lsf
mach_zehnder_modulator_unbalanced_dneff_dT_qa.lsf

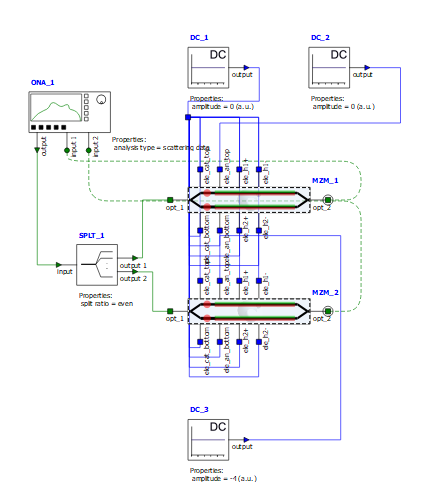

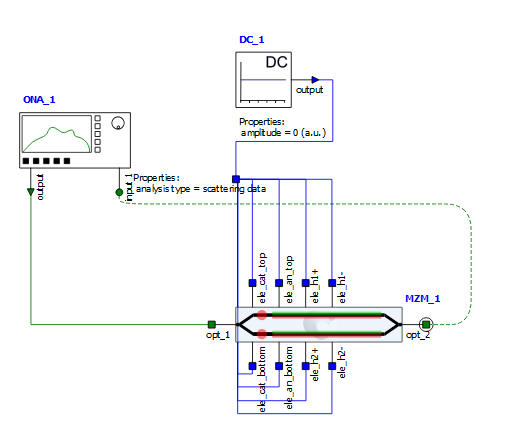

The same test-bench shown below is used by these QA scripts to calculate the gain spectrum and extract the following FOMs. These values will be compared to source data and made sure the difference is within the tolerance.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
|
|
mach_zehnder_modulator_unbalanced_Vpi_qa.lsf

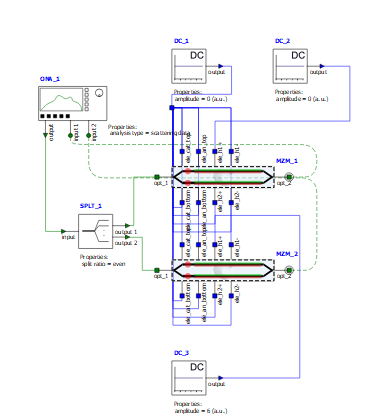

In this test bench, which runs only for models with an electrical phase shifter, two mach zehnder modulator compact models are biased with voltage values provided in "Vpi_electrical_voltage1" and "Vpi_electrical_voltage2" in the source data file, and the gain spectrum for these two cases are obtained. Notch wavelengths for these two bias points are extracted. Modulation efficiency is then calculated and the corresponding Vpi is compared to "Vpi_electrical" value in source data and make sure the difference is within the tolerance values.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
Vpi |
Vpi_electrical_tolerance |
mach_zehnder_modulator_unbalanced_thermal_Ppi_qa.lsf
In this test-bench, which runs only for models with a thermal tuner, the thermal tuner of two mach zehnder modulator compact models are biased based on the voltage corresponding to the power values provided in "Ppi_thermal_power1" and "Ppi_thermal_power2" in the source data file and the gain spectrums are obtained. Finding the notch wavelength for each case, thermal Ppi is extracted and compared to "Ppi_thermal" value in source data and make sure the difference is within the tolerance value.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
thermal_Ppi |
Ppi_thermal_tolerance |
mach_zehnder_modulator_thermal_BW_qa.lsf

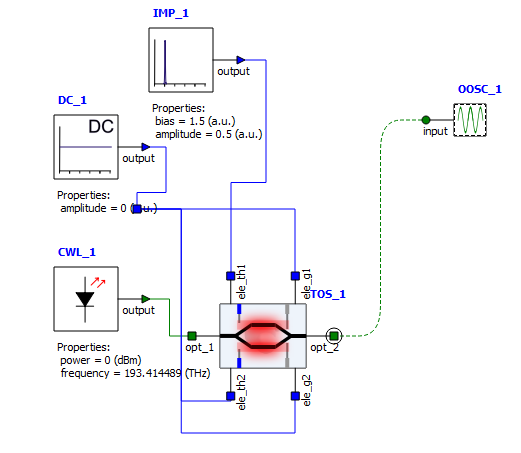

This test-bench, which runs only for models with a thermal tuner, is used to extract the thermal bandwidth for the compact model. Net 3dB bandwidth can be extracted from the circuit with a bias point defined in source data as "thermal_BW_bias". 3dB thermal bandwidth at the defined bias point can be obtained from these values and compared to data provided in "thermal_bandwidth_data" in source data and make sure the difference is within the tolerance value.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
Thermal BW |
|
mach_zehnder_modulator_BW_qa.lsf

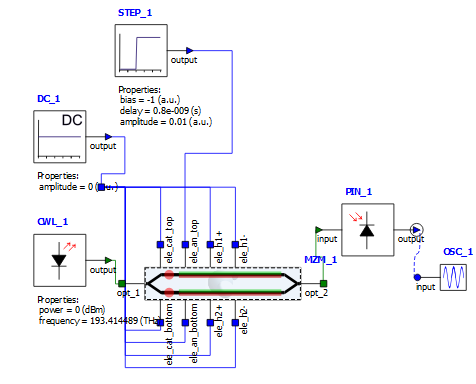

The following test-bench, which runs only for models with an electrical phase shifter, is used to extract electrical bandwidth for the mach zehnder modulator compact model. Net 3dB bandwidth can be extracted from the circuit with a bias point defined in source data as "BW_bias". The test-bench calculates the impulse response of the modulated optical signal, finds the 3dB cutoff frequency, compares it to the data provided in "electrical_bandwidth_data" in source data, and makes sure the difference is within the tolerance value.
Behavior test
QA type | FOMs | QA variables |
---|---|---|
Behavior test | BW |
|
mach_zehnder_modulator_BW_qa_RF_sweep.lsf

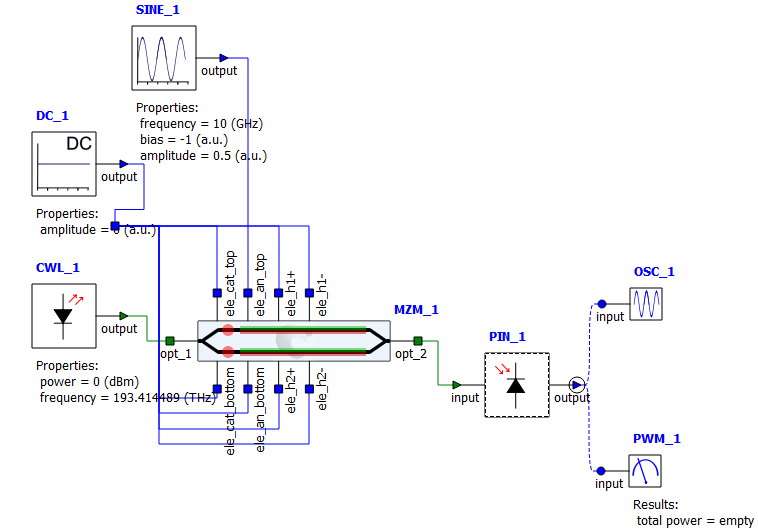

The following test-bench, which runs only for models with an electrical phase shifter, provides and alternative way to extract electrical bandwidth for the mach zehnder modulator compact model. Net 3dB bandwidth can be extracted from the circuit with a bias point defined in source data as "BW_bias". The frequency of the RF signal applied to the top arm is swept using a parameter sweep and the output ac power of the modulated signal is collected as a function of the RF frequency. The 3dB cutoff frequency from the sweep result is then compared to data provided in "electrical_bandwidth_data" in source data and made sure the difference is within the tolerance value.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
BW |
|
mach_zehnder_modulator_balanced_IL_Vpi_qa.lsf
mach_zehnder_modulator_balanced_thermal_Ppi_qa.lsf

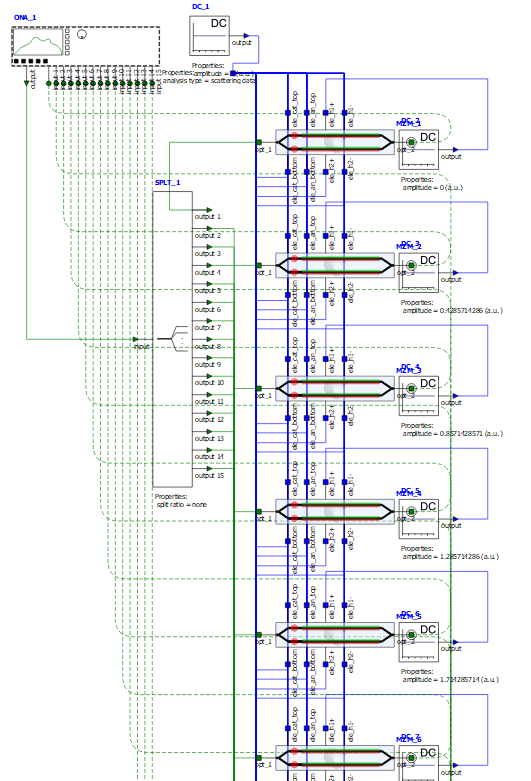

In the balanced mach zehnder modulator QA tests, fifteen mach zehnder modulator compact models are biased at different points (only six shown below). In the Vpi test bench (MZMs only), the modulators are biased between voltage values provided in "Vpi_electrical_voltage1" and "Vpi_electrical_voltage2" in the source data file, while the Ppi test bench (if thermal tuner is available) uses voltages corresponding to the power values provided by "Ppi_thermal_power1" and "Ppi_thermal_power2" in the source data file. The gain spectra are obtained for each bias point, and the minima are found for IL. Electrical Vpi and thermal Ppi are extracted and compared to "Vpi_electrical" and "Ppi_thermal" values in source data and make sure the differences are within the tolerance values.
QA type | FOMs | QA variables |
---|---|---|
Behavior test |
|
|
mach_zehnder_modulator_balanced_statistical_qa.lsf
mach_zehnder_modulator_unbalanced_statistical_qa.lsf
In these tests, for each FOM the Monte Carlo analysis is performed on related test-benches described above and data is compared to data saved in "<element_name>_stat_refdata.mat".
This test is a regression test. If this is the first time running QA, the "stat_reference_data_available" in source data should be set to "false", so the Monte Carlo results from first run will be saved in the element folder as in "<element_name>_stat_refdata.mat". For consecutive runs, "stat_reference_data_available" should be set to true, and results will be compared to these statistical data and make sure the difference is within the tolerance value.
QA type | FOMs | QA variables |
---|---|---|
Regression test |
|
|
